Integrating Angular4 application with VSTS and Azure App Service

This seed project has been created to assist fast tracking some of the issues that can arise when integrating an Angular 4 application with VSTS. This project aims to achieve the following goals:

setup a Build definition that builds and tests an Angular 4 application
setup PhantomJS for headless testing as part of Build definition
publish test results from Karma as part of the Build
setup Release configuration to Publish this application to an Azure App Service

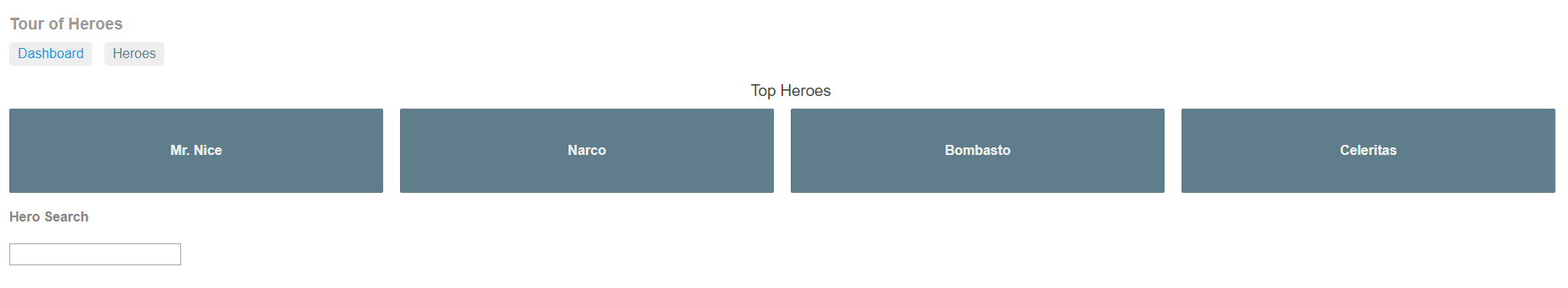

This project was generated with Angular CLI version 1.3.2 and is based on the Angular Tour of Heroes tutorial

Please note, this guide is not intended to be an overview of how to create an Angular application. First point of call is to start here

Client Side Routing

In order to get client side routing to work for an application on Azure App Service, we’ll need to create a web.config file to issue a url redirect. Simply add the below snippet to a web.config file to the root of the project.

For why this is required or if you are hosting this application not on an IIS based web server, see here

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <system.webServer>
    <rewrite>
      <rules>
        <rule name="AngularJS Routes" stopProcessing="true">
          <match url=".*" />
          <conditions logicalGrouping="MatchAll">
            <add input="{REQUEST_FILENAME}" matchType="IsFile" negate="true" />
            <add input="{REQUEST_FILENAME}" matchType="IsDirectory" negate="true" />
          </conditions>
          <action type="Rewrite" url="/" />
        </rule>
      </rules>
    </rewrite>
  </system.webServer>
</configuration>

Setup PhantomJS Configuration

This section involves the setup and configuration of PhantomJS which will be used for headless website testing. Credit to Microsoft’s article on setting this up.

Install Dev Dependancy

npm i phantomjs-prebuilt --save-dev
Install PhantomJS Karma Launcher

npm i karma-phantomjs-launcher --save-dev
Install JUnit Karma Reporter

npm i karma-junit-reporter --save-dev
Update karma.config.js

Add require('karma-phantomjs-launcher')

Add require('karma-junit-reporter')

Modify browsers configured browsers: ['Chrome', 'PhantomJS']

Add JUnit to array of reporters reporters: ['progress', 'kjhtml', 'junit'],

Setup JUnit Reporter:
```
  junitReporter: {
    outputDir: 'testresults', // results will be saved as $outputDir/$browserName.xml
    outputFile: 'test.xml' // if included, results will be saved as $outputDir/$browserName/$outputFile
  },
```

Polyfills

In order to get PhantomJS to work with the tests, some polyfills (or JavaScript fallbacks) are required to be enabled. Edit the polyfills.ts file in the src directory and uncomment the following polyfills.

 import 'core-js/es6/symbol';
 import 'core-js/es6/object';
 import 'core-js/es6/string';
 import 'core-js/es6/array';

At this juncture, you will have successfully setup your Angular project with support for running tests using PhantomJS. If you wish to see this in action, you can do so running the following command

npm test -- --watch=false --single-run=true --reporters=junit,progress --browsers=PhantomJS

The above command will execute your tests once using PhantomJS and output any results to the report files.

Create VSTS Build Definition

This section involves creating the Build definition in VSTS in order to build the application ready for deployment. Credit to Seth Reid’s article for pointing me to the majority of the grunt work.

Create a new Empty build process in VSTS
Click on Process and ensure that the Default agent queue is set to Hosted VS2017. This will help prevent issues later on with PhantomJS and how it resolves the npm dependancy as documented here
Set Get sources to the location of your repository

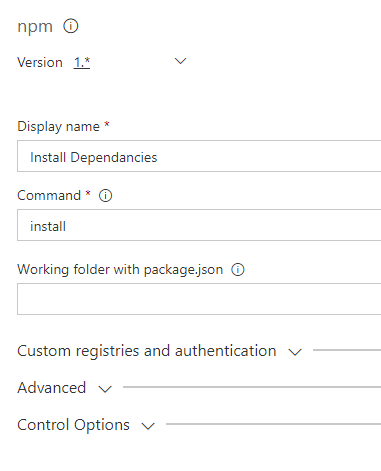

Select Add Task and add a new npm task. This step will install the npm dependancies of the project.
Select Add Task and add a new npm task. This step will build the project. We’ll execute the npm build command, which is mapped to a ng build as defined in the Angular project.json file.

Set Command to custom

Set Command and arguments to run build

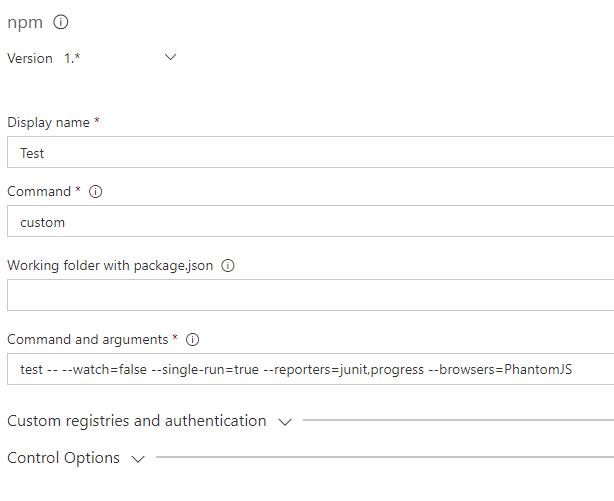

Select Add Task and add a new npm task. This step will execute the Karma tests associated with the project.

Set Command to custom

Set Command and arguments to test -- --watch=false --single-run=true --reporters=junit,progress --browsers=PhantomJS
Select Add Task and add a new Publish Test Results task. This step will publish the JUnit formatted test results from the Karma execution.

Set Test result format to JUnit

Set Test results files to testresults\**\test.xml
In order to enable client side routing on the Azure App Service, we’ll need to copy the web.config file into the distribution folder for packaging. Client Side Routing

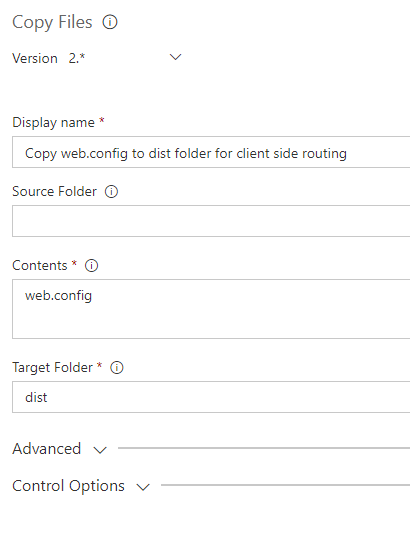

Select Add Task and add a new Copy Files

Set Contents to web.config

Set Target Folder to dist

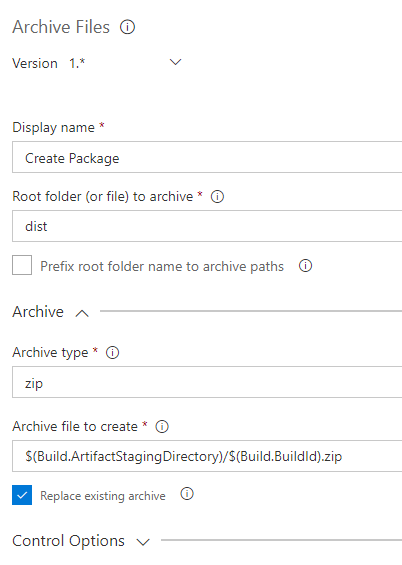

Select Add Task and add a new Archive Files. This step will bundle up the files from the /dist folder into a zip, ready for publishing into the Release pipeline.

Set Root folder (or file) to archive

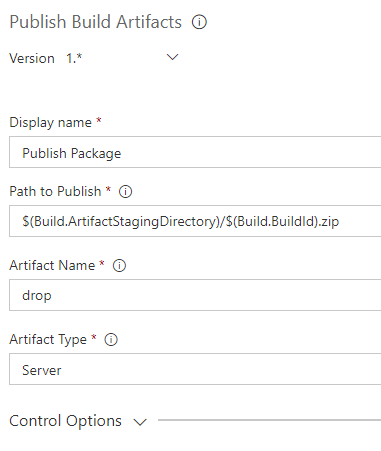

Select Add Task and add a new Publish Build Artifacts. This step will publish the package that was just created as a build artifact. This will then be consumed by the Release definition that we shall create.

Set Path to Publish to $(Build.ArtifactStagingDirectory)/$(Build.BuildId).zip

Set Artifact Name to drop
Save and Queue the build and you should be able to see your build pass and test results published out

Create VSTS Release Definition

The final section is to create a release definition that defines how we release this application to Azure. The assumption here is that you will have defined an Azure App Service instance already.

Create new release definition and select the Azure App Service Deployment template

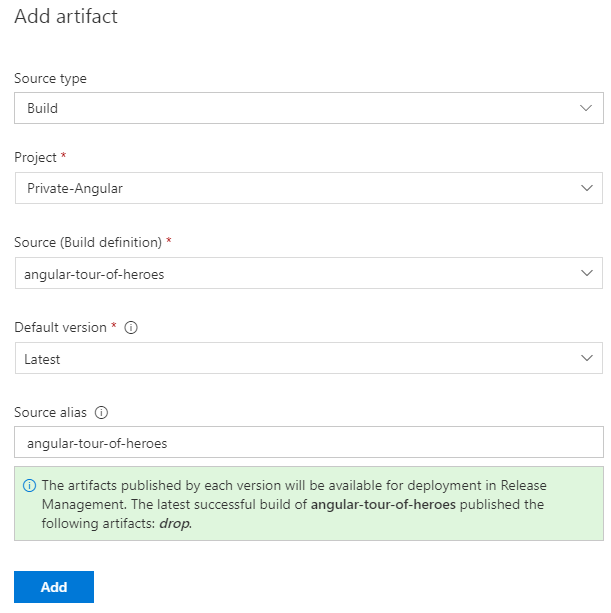

Click Add artifact and configure the options to point to your Build project

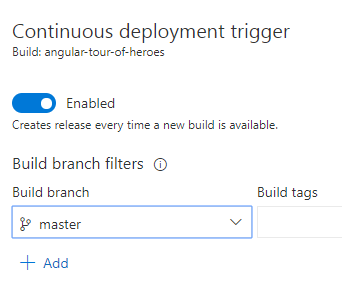

Click on the Continuous deployment trigger (Lightning icon)

Set the trigger to be Enabled

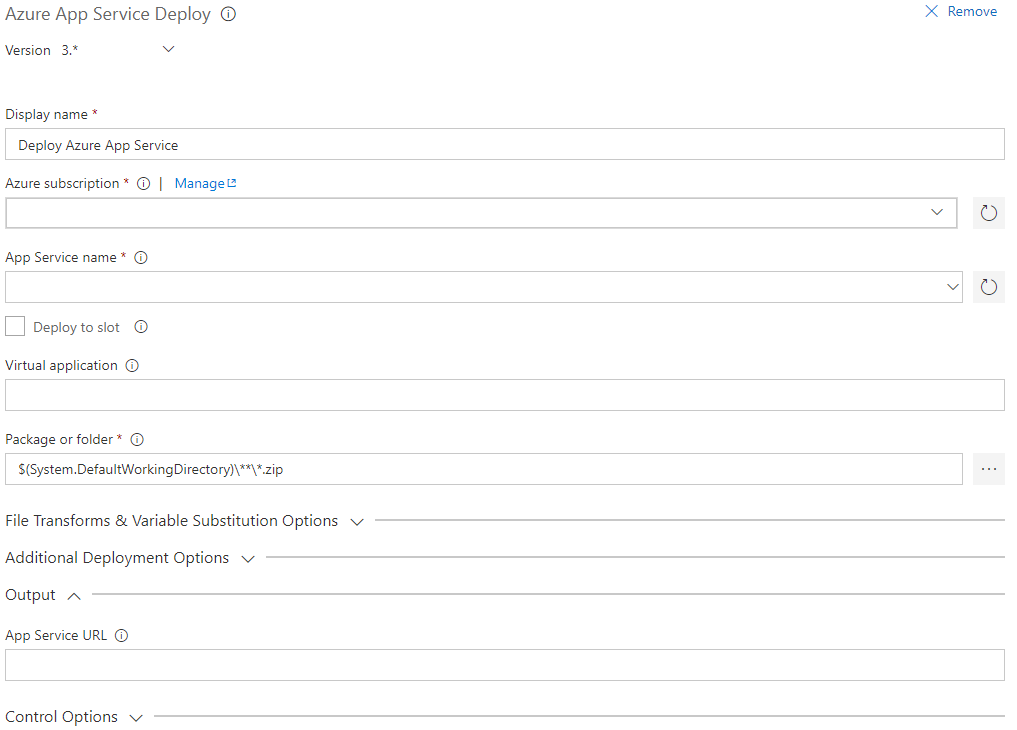

Click on the Tasks submenu and select the Deploy Azure App Service task

Select your Azure subscription and your App Service name
Click Save and create a Release

Your release pipeline is now configured and every time a commit is made, a build will be triggered and automatically deployed to your development environment.
